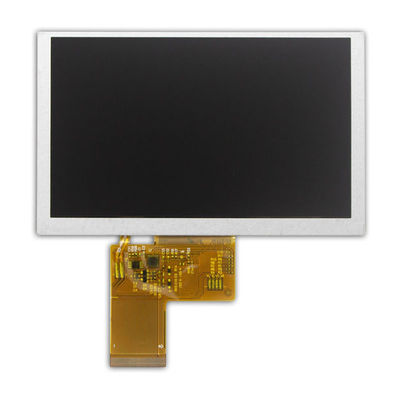

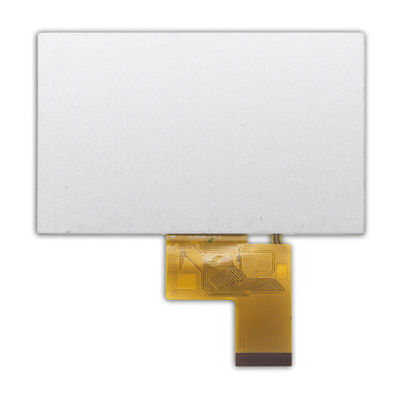

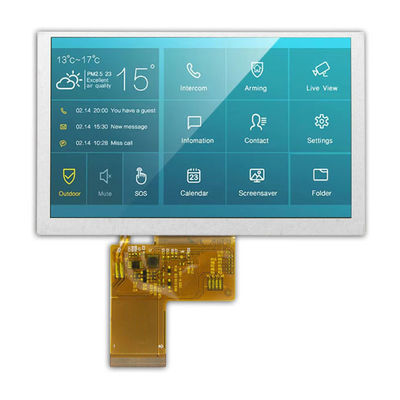

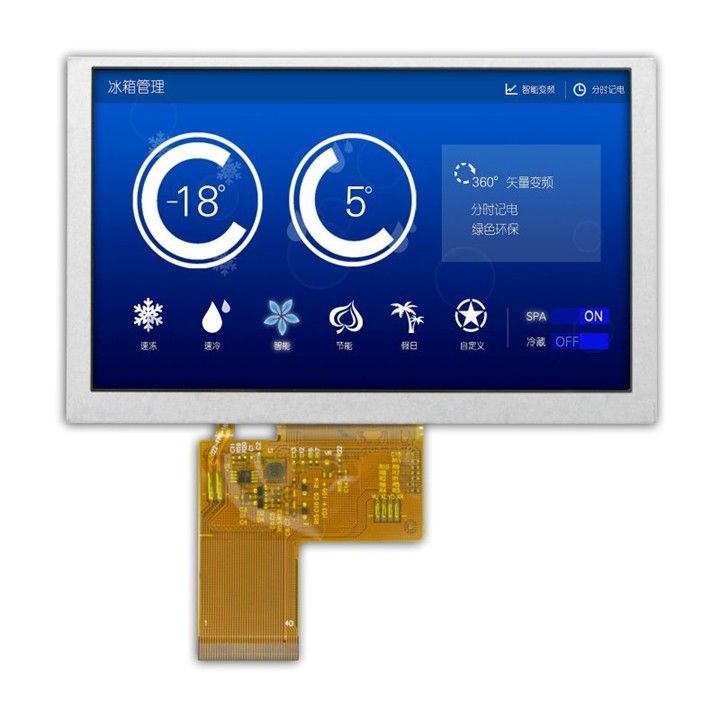

Customized 5 Inch High Brightness TFT Display, Sunlight Readable Displays TFT 2500cd/m2

Customized 5 Inch High Brightness TFT Display, Sunlight Readable Displays TFT 2500cd/m2
Customized 5 Inch High Brightness TFT Display, Sunlight Readable Displays TFT 2500cd/m2
Customized 5 Inch High Brightness TFT Display, Sunlight Readable Displays TFT 2500cd/m2 Customized 5 Inch High Brightness TFT Display, Sunlight Readable Displays TFT 2500cd/m2 Customized 5 Inch High Brightness TFT Display, Sunlight Readable Displays TFT 2500cd/m2 Customized 5 Inch High Brightness TFT Display, Sunlight Readable Displays TFT 2500cd/m2 Customized 5 Inch High Brightness TFT Display, Sunlight Readable Displays TFT 2500cd/m2 Customized 5 Inch High Brightness TFT Display, Sunlight Readable Displays TFT 2500cd/m2

Gambar besar :  Customized 5 Inch High Brightness TFT Display, Sunlight Readable Displays TFT 2500cd/m2

Detail produk:
Tempat asal: Guangdong, Tiongkok
Nama merek: AISON
Sertifikasi: ISO9001 / ISO14000/ROHS
Nomor model: Z050WV21
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1
Harga: 10~20usd/pc
Kemasan rincian: Paket/karton blister
Waktu pengiriman: 7 hari kerja
Syarat-syarat pembayaran: T/T, Western Union, Moneygram, Paypal
Menyediakan kemampuan: 200k/bulan
Kontak

Customized 5 Inch High Brightness TFT Display, Sunlight Readable Displays TFT 2500cd/m2

Deskripsi
Nama LCM: Layar TFT Kecerahan Tinggi 5 Inci Jumlah titik: 800x480
Ukuran modul (w*h*t): 120.7*75.8*2.9mm Area aktif: 108x64,80mm
Antarmuka: LVDS Kecerahan: 500cd/m2
Mode tampilan: TFT, biasanya hitam, Transmisif Arah menonton: Semua/IP
Suhu operasi: -30 hingga 80 ℃ Suhu penyimpanan: -35 hingga 85 ℃
Lampu latar: LED Putih
Menyoroti:

5 inch high brightness TFT display

,

sunlight readable TFT display 2500cd/m2

,

industrial TFT display with warranty

Customized 5 Inch High Brightness TFT Display, Sunlight Readable Displays TFT 2500cd/m2



Display General Description

  • Diagonal Dimension : 5.0 inch
  • Resolution : 800x480 pixel
  • View Direction : All
  • Touch Mode : Five points and Gestures
  • Module Dimension : 120.7*75.8*2.9mm
  • Viewing Area : 108.00(H)x64.8(V) mm
  • Supply Voltage : 3.3 V
  • Interface : 4-Lane LVDS/8BIT LVDS
  • Luminance : 500 cd/m2
  • Drive IC : ST7262 GT911
  • Operation Temperature : -30℃~80℃
  • Storage Temperature : -35℃~85℃

Z050WV21 is a 5 inch IPS TFT LCD panel display featuring IPS panel technology and a resolution of 800 x 480 pixels. The TFT-LCD module supports a LVDS interface. It boasts a brightness of 500 nits (typical) and a high contrast ratio of 1000:1 (typical). Additionally, it offers a wide operating temperature range from -30°C to +80°C, with a storage temperature range of -35°C to +85°C.

This 5” IPS TFT has a wider viewing angle than TN TFT, the view angle is Left:85 / Right:85 / Up:85 / Down:85 degree (typical value). The supply voltage of Z050WV21 model is from 3.1 to 3.6V, aspect ratio 5:3, normally black, transmissive LCD type, Anti-glare surface glass.



General Data

Model Name 5 Inch IPS TFT LCD Display
Resolution 800x480
Model Size (W*H*T)
120.7*75.8*2.9 mm
Display Area (W*H)
108 x 64.80 mm
Interface LVDS
Display Mode Normally Black,Transmissive
Viewing Angels 85/85/85/85
Brightness 500 cd/m2 can up to 2500cd/m2
Pin number 40
Contrast Ratio
 1000:1
BACKLIGHT TYPE 12 WHITE LED
Operating temperatures -30 to 80 ℃
Storage temperatures -35 to 85 ℃





Drawing


Customized 5 Inch High Brightness TFT Display, Sunlight Readable Displays TFT 2500cd/m2 0



Product Details

Customized 5 Inch High Brightness TFT Display, Sunlight Readable Displays TFT 2500cd/m2 1Customized 5 Inch High Brightness TFT Display, Sunlight Readable Displays TFT 2500cd/m2 2







TFT Applications



The 5 inch IPS LVDSTFT Displays are widely used for Industrial, Smart home,Medical, Automotive ,Intelligent and other applications.

Customized 5 Inch High Brightness TFT Display, Sunlight Readable Displays TFT 2500cd/m2 3
