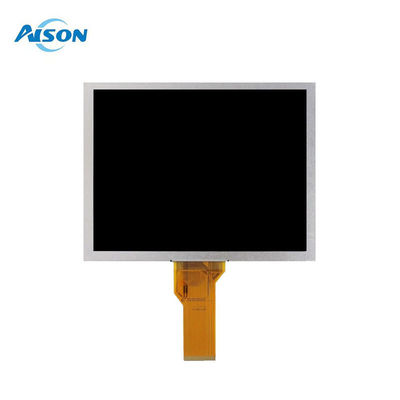

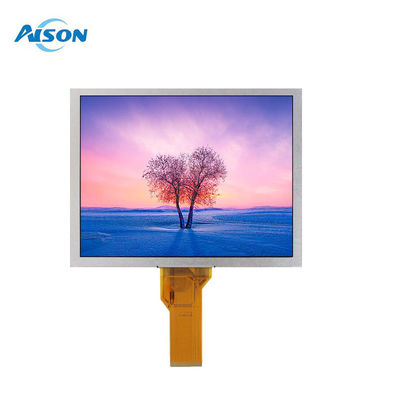

8 Inch 800*600 IPS TFT LCD Module RGB 50 Pin for Industrial Control Equipments

8 Inch 800*600 IPS TFT LCD Module RGB 50 Pin for Industrial Control Equipments
8 Inch 800*600 IPS TFT LCD Module RGB 50 Pin for Industrial Control Equipments 8 Inch 800*600 IPS TFT LCD Module RGB 50 Pin for Industrial Control Equipments 8 Inch 800*600 IPS TFT LCD Module RGB 50 Pin for Industrial Control Equipments

Gambar besar :  8 Inch 800*600 IPS TFT LCD Module RGB 50 Pin for Industrial Control Equipments

Detail produk:
Tempat asal: Guangdong, Cina
Nama merek: AISON
Sertifikasi: ISO9001 / ISO14000/ROHS
Nomor model: ZT080WS04
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1
Harga: 15~35usd/pc
Kemasan rincian: Paket/karton blister
Waktu pengiriman: 7 hari kerja
Syarat-syarat pembayaran: T/T, Western Union, Moneygram, Paypal
Menyediakan kemampuan: 200k/bulan
Kontak

8 Inch 800*600 IPS TFT LCD Module RGB 50 Pin for Industrial Control Equipments

Deskripsi
LCM: Modul 800 Inch 800*600 IPS TFT LCD Resolusi: 800x600
Dimensi modul: 182.9*141*5.5mm Area aktif: 162*121.5mm
Antarmuka: 24 bit RGB Mode tampilan: Biasanya Hitam, Transmisif
Suhu Kerja: -20 hingga 70 derajat Suhu penyimpanan: -30 hingga 80 derajat
Pengontrol driver: JD9165A-A3
Menyoroti:

8 inch IPS TFT LCD module

,

800x600 RGB LCD display

,

50 pin industrial TFT screen

8 Inch 800*600 IPS TFT LCD Module RGB 50 Pin for Industrial Control Equipments

General Description



8-inch Industrial IPS TFT LCD Resolution 800x480 Brightness 1000cd/m2

This 8inch is developed with a standard 800x480 high-resolution IPS display and RGB interface. The IPS technology delivers sunlight-readable image quality with higher brightness, better color reproduction, image consistency, and optical characteristics at any angle. The true color LCD display is RoHS compliant and can be applied to multiple industrial applications.




High-Quality Display: This 8-inch TFT LCD Module features an impressive 800x600 resolution, delivering a clear and crisp visual experience for industrial control equipment applications.



Wide Viewing Angles: Equipped with In-Plane Switching (IPS) technology, this 8 inch tft display offers a wide viewing angle, ensuring optimal visibility from various positions.



Vibrant Colors: The 8 inch lcd screen delivers 16.7 million display colors, providing a rich and immersive visual experience for industrial control and monitoring applications.



Durable and Rugged: Designed to operate in harsh conditions, this display functions within a wide temperature range (-20°C to 70°C) and has a storage temperature range of -30°C to 80°C, making this 8 inch IPS TFT -LCD ideal for demanding environments.



High Brightness and Contrast: With a luminance of 1000 cd/m² and a contrast ratio of 800:1, this 8 inch IPS display ensures clear visibility even in bright environments.


General Data

Model Name 8 Inch 800*600 IPS TFT LCD Module
Resolution 800X600
Model Size (W*H*T)mm
182.9*141*5.5 mm
Display Area (W*H)mm
183x141x6mm
Interface 24 Bit RGB
Display Mode Normally Black,Transmissive
Viewing ALL
Brightness 1000 cd/m2
Pin number 50
Viewing Angle 80/80/80/80
BACKLIGHT TYPE 27 WHITE LED
Operating temperatures -20 to 70 degree
Storage temperatures -30 to 80 degree



Drawing
8 Inch 800*600 IPS TFT LCD Module RGB 50 Pin for Industrial Control Equipments 08 Inch 800*600 IPS TFT LCD Module RGB 50 Pin for Industrial Control Equipments 18 Inch 800*600 IPS TFT LCD Module RGB 50 Pin for Industrial Control Equipments 2

Product Details
8 Inch 800*600 IPS TFT LCD Module RGB 50 Pin for Industrial Control Equipments 3

TFT Applications:

This 8 inch 4:3 TFT LCD module is versatile and suitable for a wide range of applications:
 Including embedded systems, industrial devices, security systems, medical equipment, consumer electronics, and handheld devices. Its adaptability and compatibility make it an excellent choice for a wide range of projects.

8 Inch 800*600 IPS TFT LCD Module RGB 50 Pin for Industrial Control Equipments 4


Label:

Modul Tampilan LCD TFT,

Modul LCD TFT Berwarna,

TFT LCD Module Display
