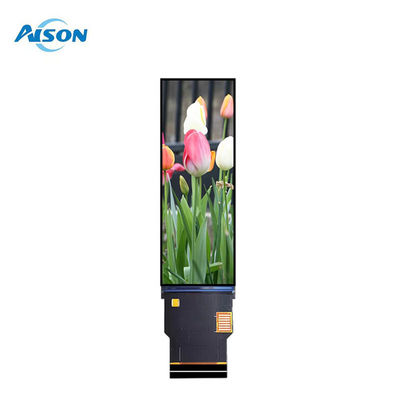

2.99 3 Inch 268x800 Stretched Bar LCD Display TFT LCD Module Drive IC ST7701S

2.99 3 Inch 268x800 Stretched Bar LCD Display TFT LCD Module Drive IC ST7701S
2.99 3 Inch 268x800 Stretched Bar LCD Display TFT LCD Module Drive IC ST7701S 2.99 3 Inch 268x800 Stretched Bar LCD Display TFT LCD Module Drive IC ST7701S 2.99 3 Inch 268x800 Stretched Bar LCD Display TFT LCD Module Drive IC ST7701S 2.99 3 Inch 268x800 Stretched Bar LCD Display TFT LCD Module Drive IC ST7701S 2.99 3 Inch 268x800 Stretched Bar LCD Display TFT LCD Module Drive IC ST7701S

Gambar besar :  2.99 3 Inch 268x800 Stretched Bar LCD Display TFT LCD Module Drive IC ST7701S

Detail produk:
Tempat asal: Guangdong, Cina
Nama merek: AISON
Sertifikasi: ISO9001 / ISO14000/ROHS
Nomor model: Z0299WV01
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1
Harga: dapat dinegosiasikan
Kemasan rincian: Paket/karton blister
Waktu pengiriman: 7 hari kerja
Syarat-syarat pembayaran: T/T, Western Union, Moneygram, Paypal
Menyediakan kemampuan: 100K/bulan
Kontak

2.99 3 Inch 268x800 Stretched Bar LCD Display TFT LCD Module Drive IC ST7701S

Deskripsi
Nama: Tampilan batang peregangan 2,99 inci Resolusi: 268x800
Garis Besar Dimensi: 26.96*80.08*1.72mm Area aktif: 24.12*72mm
Antarmuka: RGB 18BIT+SPI3W Sudut pandang: 85/85/85/85
Kecerahan: 800 CD/M2 Arah menonton: Semua/IP
Suhu operasi: -20 hingga 70 derajat Suhu penyimpanan: -30 hingga 80 derajat
Menyoroti:

3 inch bar LCD display

,

ST7701S TFT LCD module

,

268x800 stretched LCD screen

2.99 3 Inch 268x800 Stretched Bar LCD Display TFT LCD Module Drive IC ST7701S



General Description



Z0299WV01is a transmissive type color active matrix TFT (Thin Film Transistor) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of a TFT-LCD module (TFT-LCD panel, driver IC and FPC), a back-light unit and. The resolution of 2.99" contains 268 RGB X800 pixels and can display up to 16.7m colors.

Reliability and Durability:
Our BAR LCD Display undergoes rigorous environmental and reliability testing, including high and low-temperature operations, thermal shock, and electrostatic discharge tests, ensuring long-lasting performance.

Mechanical Drawings and Packaging:
Detailed mechanical drawings are provided for precise installation, and our packaging methods are designed to protect the module during transit.

Usage Precautions:
- Handle with care to avoid mechanical shock and damage.
- Store in conditions avoiding direct sunlight and harmful gases.
- Ensure proper grounding to prevent static damage during handling and assembly.





General Data

Model Name 2.99 inch Bar Type LCD Display
Resolution 268x800
Model Size (W*H*T)mm 26.96*80.08*1.72mm
Display Area (W*H)mm 24.12*72mm
Interface RGB 18bit+SPI3W
Display Mode Normally Black,Transmissive
Viewing IPS
Brightness 800 cd/m2
Pin number 40 pin
Contrast Ratio
 1200:1
Operating temperatures -20 to 70 degree
Storage temperatures -30 to 80 degree





Drawing



2.99 3 Inch 268x800 Stretched Bar LCD Display TFT LCD Module Drive IC ST7701S 0





Product Details

2.99 3 Inch 268x800 Stretched Bar LCD Display TFT LCD Module Drive IC ST7701S 12.99 3 Inch 268x800 Stretched Bar LCD Display TFT LCD Module Drive IC ST7701S 2







TFT Applications:

This bar type lcd module operates in temperatures ranging from -20℃ to +70℃, and can be stored in temperatures from -30℃ to +80℃. With the demand for custom projects going up every day, the bar type TFT market is growing correspondingly. And our bar type TFT solution can be perfectly used in many applications like industrial, automotive, medical, home appliance and maritime, etc. This bar type TFT module is ideal for use in electronic door locks, massage chair control panels, and other devices that require a stretched display screen.

2.99 3 Inch 268x800 Stretched Bar LCD Display TFT LCD Module Drive IC ST7701S 3
